JTLG SERIES B (TUBE CNC LASER CUTTING MACHINE)

Budget-Friendly Tube CNC Laser Cutting Machine

For metalworking industries in Malaysia, the JTLG Series B Tube CNC Laser Cutting Machine offers efficient and accurate cutting of round, square, and rectangular tubes, built with a reinforced bed and pneumatic chuck for stable performance.

🔧 Key Features

• Professional Tube Cutting Head: Supports high-speed cutting with clean, burr-free edges across various pipe materials.

• Full-Automatic Pneumatic Chuck: Delivers strong, centralized clamping with fast response, ideal for heavy-duty pipe loading.

• Weld Seam Detection (Optional): Enhances precision by intelligently positioning cuts relative to the pipe’s weld seam.

• Length Extension Options:  This CNC laser Cutting Machine Capable of handling tube lengths from 6m up to 9m depending on your production needs.

• Bochu CNC Control System: Stable, user-friendly interface for seamless tube nesting, auto-focusing, and smart cutting strategies.

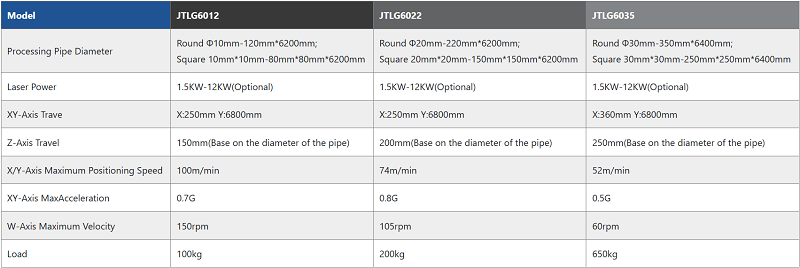

📏 Cutting Capabilities

• Round Tube: Up to Ø 350mm

• Square Tube: Up to 240 x 240mm

• Wall Thickness: Mild Steel up to 10mm

• Laser Power from 1500w, 3000w, 6000w
• Table Size from 6m, 12m
